HPV-60W

You are here: Home » Products

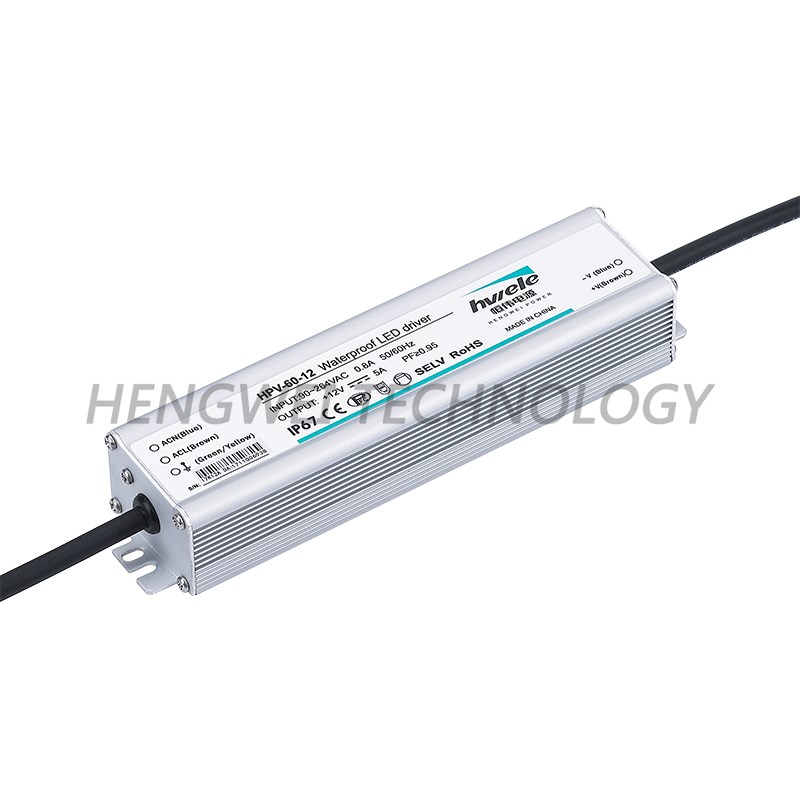

HPV-60W series PFC Constant Voltage LED driver

Features:·universal AC input

·BUilt-in power factor correction

·Protections:short circuit/over load/over voltage/over temp

·Cooling by free air convection

·IP67 design for indoor or outdoor installations

·Suitble for LED lighting and moving sign applications

·3Year warranty

Model

HPV-60-12

HPV-60-15

HPV-60-24

HPV-60-36

HPV-60-48

output

DC voltage

12V

15V

24V

36V

48V

Rated current

5A

4A

2.5A

1.7A

1.3A

Rated power

60W

60W

60W

61.2W

62.4W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

33~40V

44~53V

input

Voltage range

90~264VAC47~63HZ 127~370VDC

AC current

0.8A/115VAC0.4A/230VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

efficiency

84%

87%

89%

89%

90%

Inrush current

Cold start current 20A/115VAC40A/230VAC

Leakage current

< 0.5mA/240VAC

protection

Over load

95%~110%

protection type :Constant current limiting auto-recovery after fault condition is removed

Short circuit

Hiccup moderecovers automatically after fault condition is remove

Over voltage

13.8~16V

18~24V

28~35V

41~49V

54~63V

protection type:Shut down o/p voltage re-power on to recover

Over temperature

95±10RTH2

protection type:Shut down o/p voltage re-power on to recover

environment

Working temp,humidity

-30~+6020%~90%RH

Storagetemp,humidity

-40~+8510%~95%RH non-condensing

Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved

EMC standard

Fit EN55015EN61000-3-2ClassC(>60%load):EN61000-3-3

others

Dimension

174*63*39mm(L*W*H)

Weight/packing

0.75kg/20pcs/16kg/0.026m³/0.91CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
