HS-600W

You are here: Home » Products

HS-600W

·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
·Cooling fan ON-OFF auto control
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

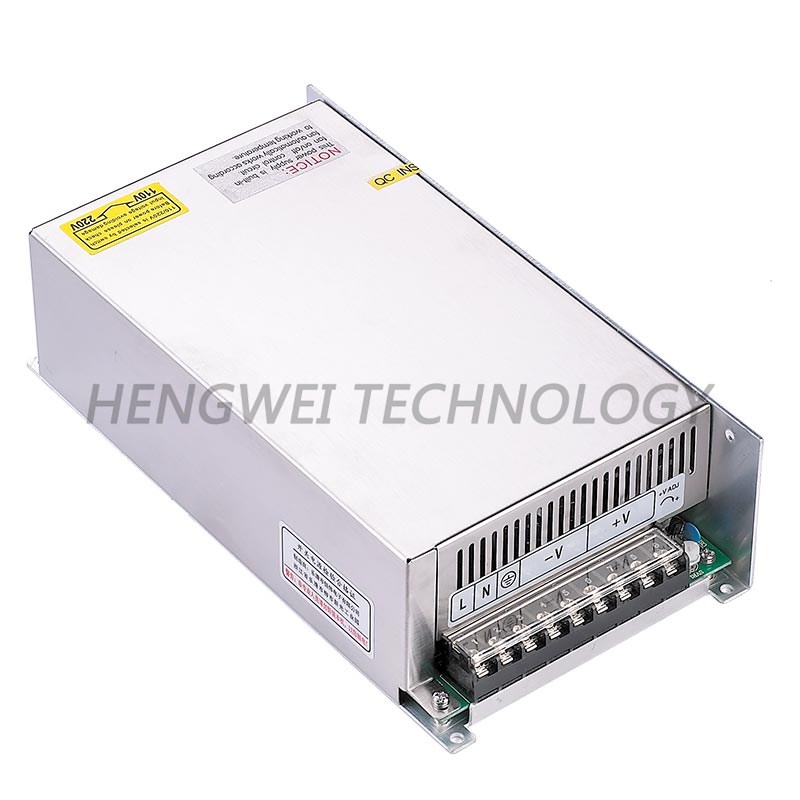

HS-600W series compact single switching power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage/over temp

·Built-in cooling DC fan

·Cooling fan ON-OFF auto control

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

HS-600-12

HS-600-13.5

HS-600-15

HS-600-24

HS-600-36

HS-600-48

output

DC voltage

12V

13.5V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

50A

44.5A

40A

25A

16.6A

12.5A

Current range

0~50A

0~44.5A

0~40A

0~25A

0~16.6A

0~12.5A

Rated power

600W

600.8W

600W

600W

597.6W

600W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

180mvp-p

200mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

12A/115VAC,6.0A/230VAC

efficiency

82%

82%

83%

84%

85%

86%

Inrush current

Cold start current25A/115VAC,50A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power105%~135% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

15.6~17.8V

18.6~20.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

Protection type:hiccup mode,auto-recovery after fault condition is removed

Over temperature

≥55℃fan on,≤50℃fan off,≥85℃start over temperature protection

protection type:hiccup mode,auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

238*124*65mm(L*W*H)

Weight/packing

1.5kg/12pcs/19kg/0.033m³/1.18CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
