LPV-60W

You are here: Home » Products

LPV-60W

​·Constant voltage style power supply
·universal AC input range
·Small volume,low weight,high efficiency
·Protections: short circuit/over load/over voltage/over temp
·Cooling by free air convection
·Fully encapsulated with IP67 level
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

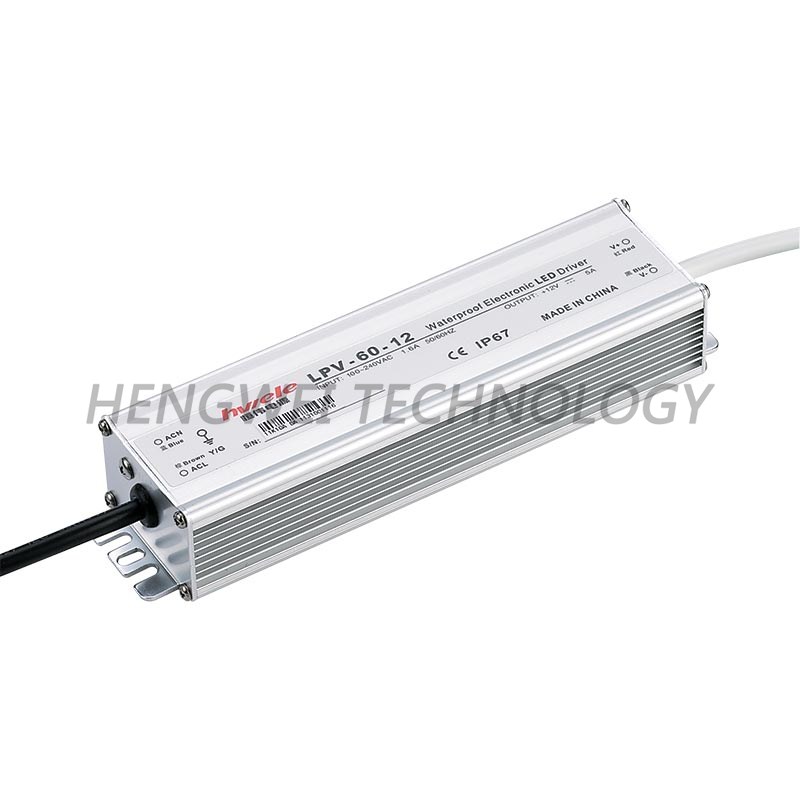

LPV-60W series LED constant voltage waterproof switching power supply

Features:

·Constant voltage style power supply

·universal AC input range

·Small volume,low weight,high efficiency

·Protections: short circuit/over load/over voltage/over temp

·Cooling by free air convection

·Fully encapsulated with IP67 level

·100% full load burn-in test

·2 Years warranty

Model

LPV-60-12

LPV-60-24

LPV-60-36

LPV-60-48

output

DC voltage

12V

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

5A

2.5A

1.7A

1.3A

Current range

0~5A

0~2.5A

0~1.7A

0~1.3A

Rated power

60W

60W

61.2W

62.4W

Ripple&noise

100mvp-p

150mvp-p

180mvp-p

180mvp-p

input

Voltage range

90~264VAC,126~373VDC

Frequency

47~63HZ

AC current

1.6A/115VAC,0.8A/230VAC

Efficiency

82%

84%

84%

85%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

<1mA/240VAC

protection

Over load

Rated output power115%~135%start over load protection

Protection type: hiccup mode,auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

Protection type: hiccup mode,auto-recovery after fault condition is removed

Over temperature

Shell temp≥85℃,start over temperature protection

Protection mode: cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp.humidity

-20℃~+85℃,10%~95%RH non condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60minutes,each axes

safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P、I/P-FG、O/P-FG:100Mohms/500VDC

Fits

tandard

Safety standard

Fit UL1012,IP67 protect level

EMC standard

Fit EN55022,CLASSA

Others

Dimension

190*49*34mm(L*W*H)

Weight/packing

0.55kg/30pcs/17.5kg/0.025 m³/0.87CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
