MS-35W

·Universal AC inputrange
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

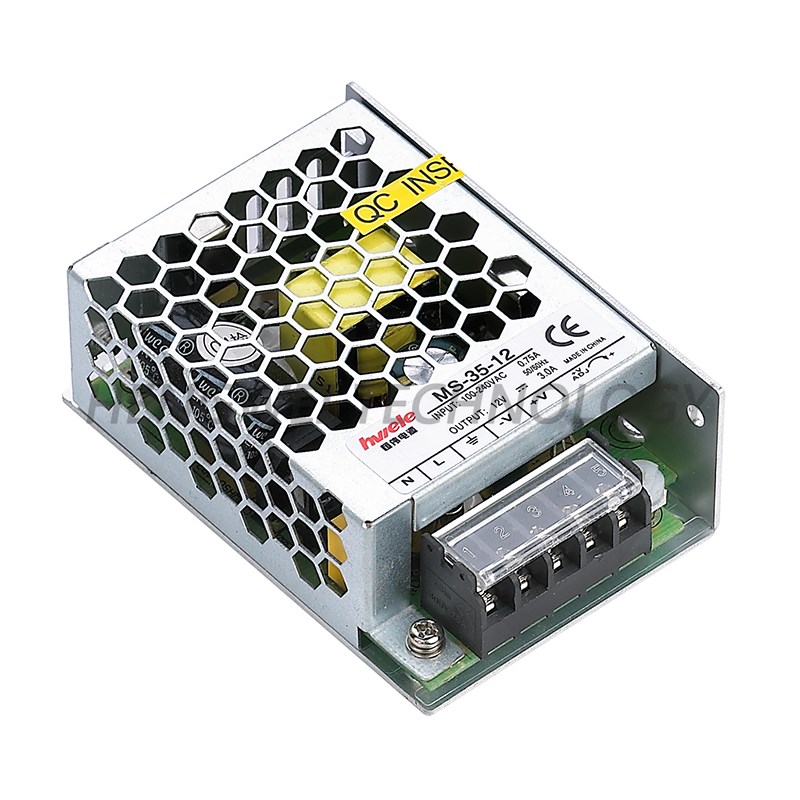

MS-35W series MINI single switching power supply

Features:

·Universal AC inputrange

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

MS-35-5

MS-35-12

MS-35-15

MS-35-24

output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±2%

±1%

±1%

±1%

Rated current

5A

3A

2.4A

1.5A

Current range

0~5A

0~3A

0~2.4A

0~1.5A

Rated power

25W

36W

36W

36W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

input

Voltage range

90~264VAC,235~373VDC

frequency

47~63HZ

AC current

0.45A/230VAC

efficiency

76%

81%

81%

83%

Inrush current

Cold start current 30A/230VAC

Leakage current

< 1mA/240VAC

protection

overload

Rated output power115%~135% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

Rated output power145%~170%

protection type:hiccup mode,auto-recovery after fault condition is removed

over temp

When temperature of transistor inner node is over150℃,Start over temp protection

protection type:hiccup mode,auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+50℃,20%~90%RH

Storage temp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

84*58*30mm (L*W*H)

MTBF

380K hrs min. MIL-HDBK-217F(25℃)

Weight/packing

0.17kg/80pcs/14.5kg/0.024m³/0.87CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

Send Inquiry

If you have any enquiry about quotation or cooperation,please feel free to email us at sales@hwele.net or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
