S-100W

·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

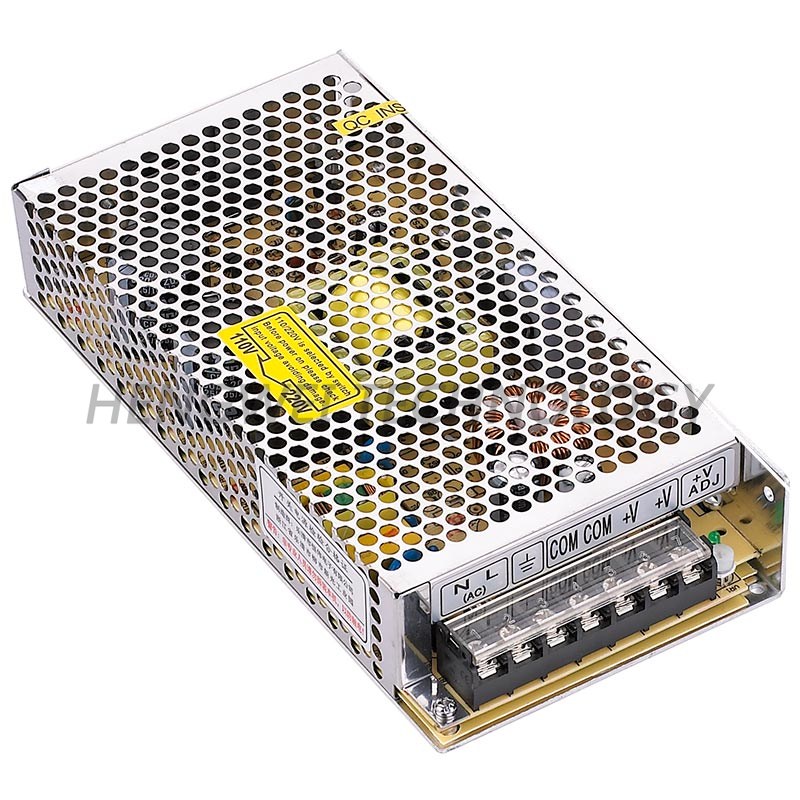

S-100W series normal single switching power supply

Features:

·AC input voltage range selected by switch

·Small volumelow weighthigh efficiency

·Protections:short circuit/over load

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

S-100-5

S-100-12

S-100-15

S-100-24

S-100-36

S-100-48

output

DC voltage

5V

12V

15V

24V

36V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

20A

8.5A

6.7A

4.5A

2.8A

2A

Current range

0~20A

0~8.5A

0~6.7A

0~4.5A

0~2.8A

0~2A

Rated power

100W

102W

100.5W

108W

100.8W

96W

Ripple&noise

100mvp-p

120mvp-p

120mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)255~373VDC

frequency

47~63HZ

AC current

2.4A/115VAC1.2A/230VAC

efficiency

78%

80%

80%

82%

82%

83%

Inrush current

Cold start current18A/115VAC36A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff outputrecovery after restart power

-----

-----

-----

-----

-----

-----

environment

Working temp,humidity

-10~+6020%~90%RH

Storagetemp,humidity

-20~+8510%~95%RH non-condensing

Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022CLASSA

others

Dimension

199*98*38mm(L*W*H)

Weight/packing

0.6kg/30pcs/19kg/0.034 m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
