SP-500W

You are here: Home » Products

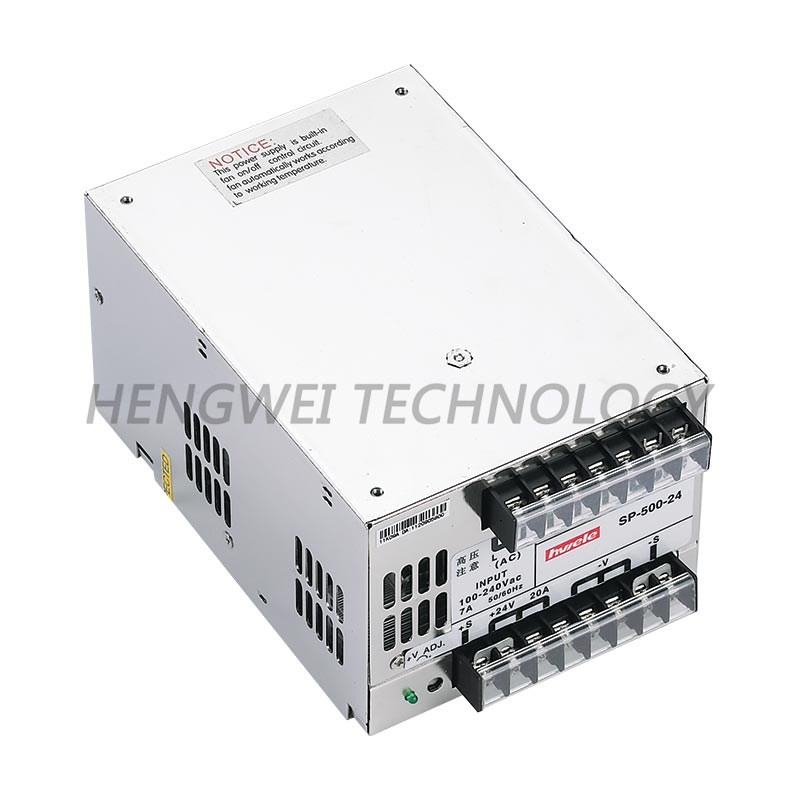

SP-500W

·universalACinputrange
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
​·Cooling fan ON-OFF auto control
·BUilt-in PFC (power factor correction), PF>0.95
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

SP-500W series PFC functional single switching power supply

Features:

·universalACinputrange

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage/over temp

·Built-in cooling DC fan

·Cooling fan ON-OFF auto control

·BUilt-in PFC (power factor correction), PF>0.95

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

SP-500-12

SP-500-15

SP-500-24

SP-500-27

SP-500-36

SP-500-48

output

DC voltage

12V

15V

24V

27V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

±1%

±1%

Rated current

40A

32A

20A

18A

13.5A

10A

Current range

0~40A

0~32A

0~20A

0~18A

0~13.5A

0~10A

Rated power

480W

480W

480W

480W

486W

480W

Ripple&noise

240mvp-p

240mvp-p

240mvp-p

240mvp-p

240mvp-p

240mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~264VAC,125~370VDC

frequency

47~63HZ

AC current

7.0A/115VAC,3.5A/230VAC

efficiency

83%

83%

84%

84%

85%

86%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

< 3.5mA/240VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

protection

overload

Rated output power110%~135% start over load protection

Protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

42.6~44.2V

54.8~56.6V

Protection type:hiccup mode,auto-recovery after fault condition is removed

Over temperature

≥50℃fan on,≤45℃fan off,≥85℃±5℃start over temperature protection

Protection mode:cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storagetemp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance toUL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

170*120*93mm(L*W*H)

Weight/packing

1.8kg/8pcs/15.5kg/0.027m³/0.96CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
