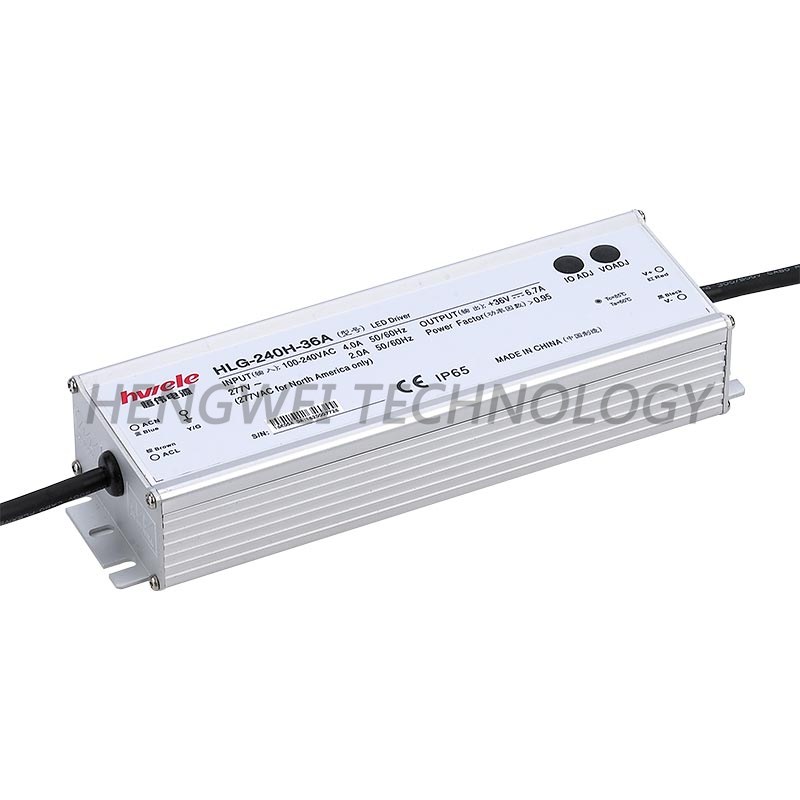

HLG-240W

Model

HLG-240-20

HLG-240-24

HLG-240-36

HLG-240-42

HLG-240-48

HLG-240-54

output

DC voltage

12V

24V

36V

42V

48V

54V

Constant current region

6~12V

12~24V

18~36V

21~42V

24~48V

27~54V

Rated current

16A

10A

6.7A

5.72A

5A

4.45A

Rated power

192W

240W

241.2W

240.2W

240W

240.3W

Ripple&noise

150mvp-p

150mvp-p

250mvp-p

250mvp-p

250mvp-p

350mvp-p

Voltage ADJ range

11.2~12.8V

22.4~25.6V

33.5~38.5V

39~45V

44.8~51.2V

50~57V

Current ADJ range

Can be adjusted by internal potentiometer or through output cable

8~16A

5~10A

3.3~6.7A

2.86~5.72A

2.5~5A

2.23~4.45A

Voltage tolerance

±2.5%

±1%

±1%

±1%

±1%

±1%

input

Voltage range

90~264VAC，47~63HZ，127~370VDC

AC current

4A/115VAC，2A/230VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

efficiency

90%

93%

93%

93%

93.5%

94%

Inrush current

Cold start current35A/115VAC，75A/230VAC

Leakage current

< 0.75mA/240VAC

protection

Over current

95%~108%

protection type :Constant current limiting，auto-recovery after fault condition is removed

Short circuit

Hiccup mode，recovers automatically after fault condition is remove

Over voltage

15.5~18V

26~33V

40~48V

46~50V

53~62V

59~65V

protection type:Shut down o/p voltage re-power on to recover

Over temperature

105℃±10℃（RTH2）

protection type:Shut down o/p voltage re-power on to recover

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved

EMC standard

Fit EN55015，EN61000-3-2ClassC(>60%load):EN61000-3-3

others

Dimension

247*69*39mm(L*W*H)

Weight/packing

1.3kg/20pcs/27kg/0.033m³/1.15CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
