MS-25W

You are here: Home » Products

MS-25W

·Universal AC inputrange
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

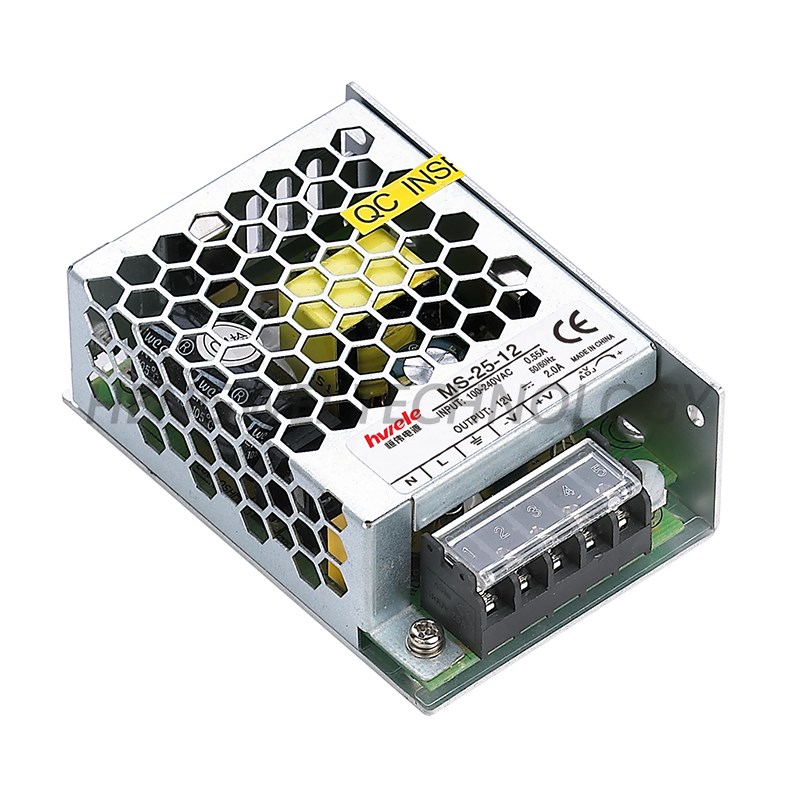

MS-25W series MINI single switching power supply

Features:

·Universal AC inputrange

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

MS-25-12

MS-25-15

MS-25-24

-----

output

DC voltage

12V

15V

24V

-----

Voltage tolerance

±1%

±1%

±1%

-----

Rated current

2.1A

1.7A

1.1A

-----

Current range

0~1.3A

0~1.7A

0~1.1A

-----

Rated power

25.2W

25.5W

26.4W

-----

Ripple&noise

100mvp-p

120mvp-p

150mvp-p

-----

DCvoltage ADJ.range

±10%

±10%

±10%

-----

input

Voltage range

90~264VAC,235~373VDC

frequency

47~63HZ

AC current

0.35A/230VAC

efficiency

78%

78%

80%

-----

Inrush current

Cold start current 30A/230VAC

Leakage current

< 0.5mA/240VAC

protection

overload

Rated output power110%~135% start over load protection

protection type :part layer type current limit,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-25℃~+50℃,20%~90%RH

Storage temp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance toUL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

84*58*30mm (L*W*H)

MTBF

405K hrs min. MIL-HDBK-217F(25℃)

Weight/packing

0.15kg/80pcs/13kg/0.024m³/0.87CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
