HS-60W

当前位置:首页 » 产品中心

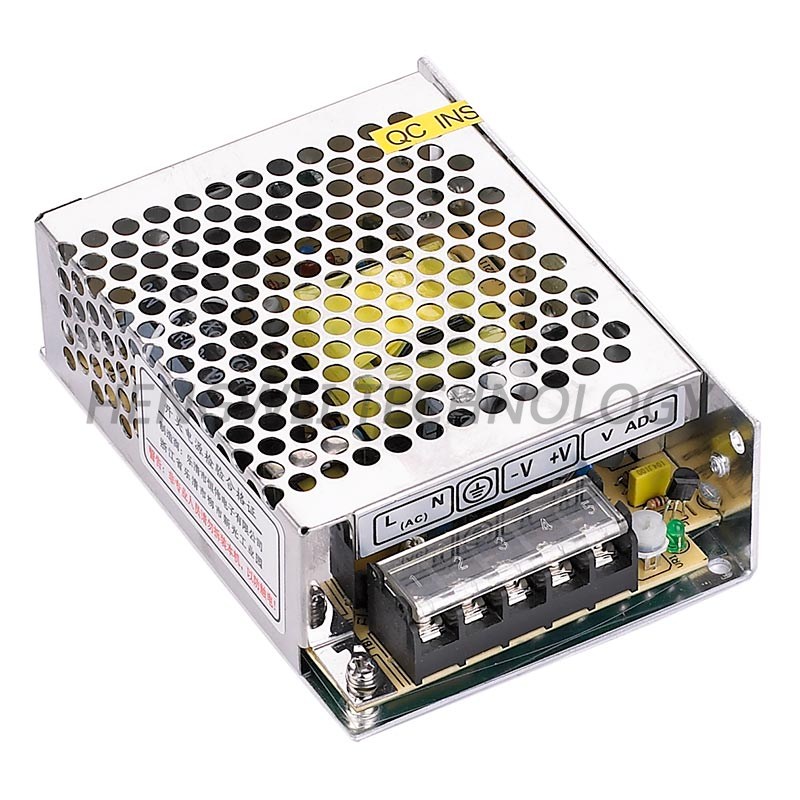

HS-60W

​·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
发送邮件  PDF 下载
【上一个产品】 【下一个产品】

HS-60W series compact single switching power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

HS-60-12

HS-60-15

HS-60-24

output

DC voltage

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

Rated current

5A

4A

2.5A

Current range

0~5A

0~4A

0~2.5A

Rated power

60W

60W

60W

Ripple&noise

100mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

input

Voltage range

90~132VAC/170~264VAC(selected by switch),235~373VDC

frequency

47~63HZ

AC current

1.6A/115VAC,0.8A/230VAC

efficiency

82%

82%

84%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC

protection

overload

Rated output power115%~135% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance toUL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

111*78*36mm(L*W*H)

Weight/packing

0.27kg/50pcs/14.5kg/0.027 m³/0.96CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
