DR-30W

You are here: Home » Products

DR-30W

·universalACinputrange
·Small volume,low weight,high efficiency
·Protection:short circuit/over load/over voltage
·cooling by free air convection
·can be installed onDINrail:TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

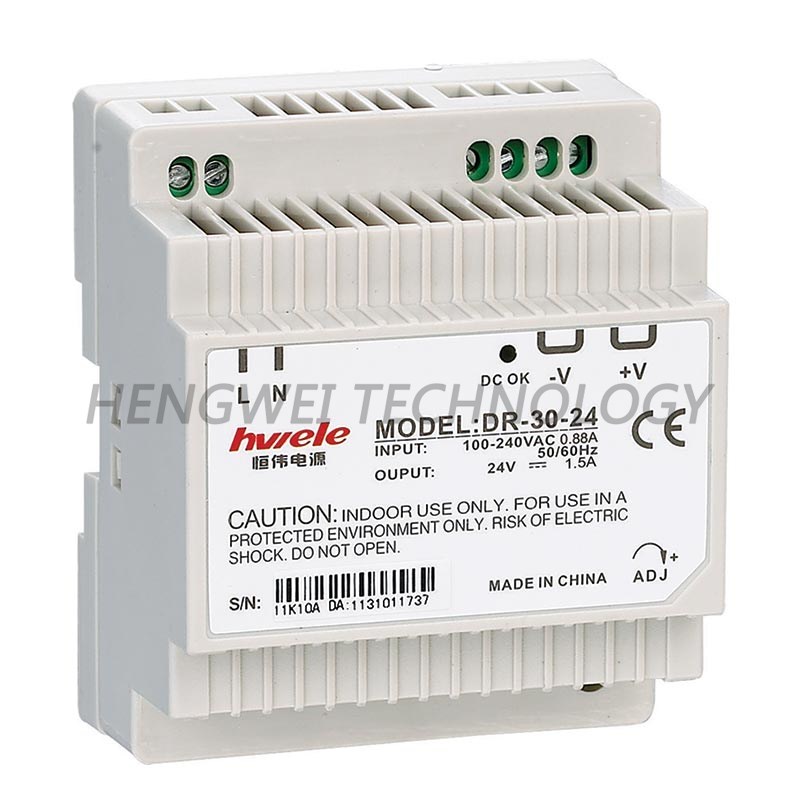

DR-30W series Din-rail power supply

Features:

·universalACinputrange

·Small volume,low weight,high efficiency

·Protection:short circuit/over load/over voltage

·cooling by free air convection

·can be installed onDINrail:TS-35/7.5or TS-35/15

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

DR-30-5

DR-30-12

DR-30-24

output

DC voltage

5V

12V

24V

Voltage tolerance

±2%

±1%

±1%

Rated current

3A

2A

1.5A

Current range

0~3A

0~2A

0~1.5A

Rated power

15W

24W

36W

Ripple&noise

80mvp-p

100mvp-p

150mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

input

Voltage range

90~264VAC,127~373VDC

frequency

47~63HZ

AC current

0.88A/110VAC,0.48A/220VAC

efficiency

75%

81%

83%

Inrush current

Cold start current 15A/115VAC,30A/230VAC

Leakage current

< 1mA/240VAC

protection

Over load

Rated output power105%~150% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

6.8~8.2V

15.6~17.8V

30.6~33.2V

protection type:cut off output voltage,diode clamp

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storage temp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

78*93*56mm(L*W*H)

Weight/packing

0.27kg/48pcs/14kg/0.03m³/1.07CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
