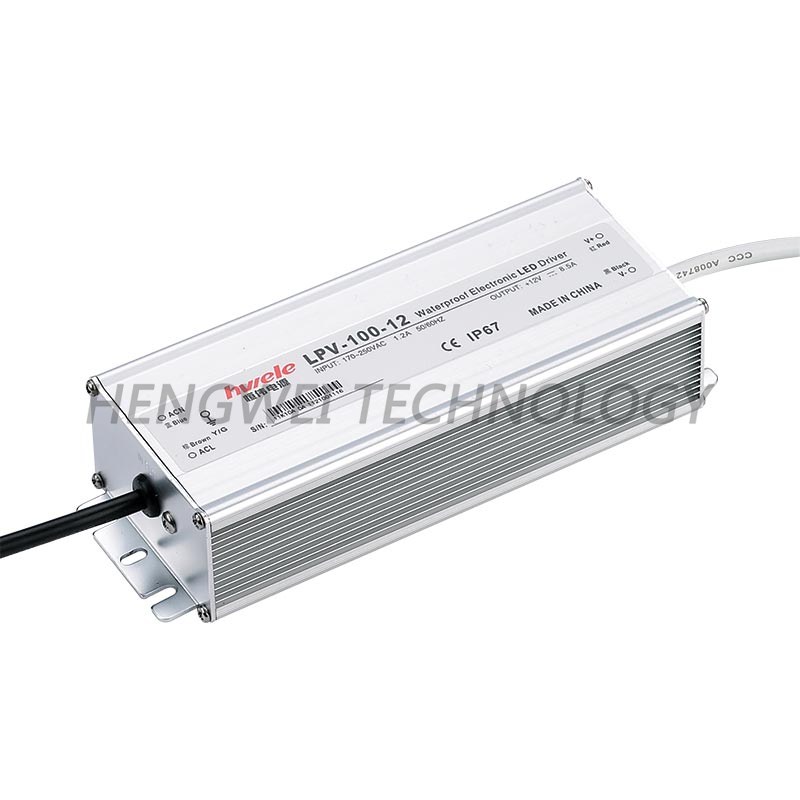

LPV-100W

Model

LPV-100-12

LPV-100-24

LPV-100-36

LPV-100-48

output

DC voltage

12V

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

8.5A

4.2A

2.8A

2.1A

Current range

0~8.5A

0~4.2A

0~2.8A

0~2.1A

Rated power

102W

100.8W

100.8W

100.8W

Ripple&noise

100mvp-p

150mvp-p

150mvp-p

180mvp-p

input

Voltage range

90~264VAC，126~373VDC

Frequency

47~63HZ

AC current

2.4A/115VAC,1.2A/230VAC

Efficiency

82%

84%

84%

85%

Inrush current

Cold start current20A/115VAC,40A/230VAC

Leakage current

<2.5mA/240VAC

protection

Over load

Rated output power105%~135%start over load protection

Protection type: hiccup mode，auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

Protection type: hiccup mode，auto-recovery after fault condition is removed

Over temperature

Shell temp≥85℃，start over temperature protection

Protection mode: cutoff output，auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storage temp.humidity

-20℃~+85℃，10%~95%RH non condensing

Withstand vibration

10~500HZ，2G10min/1cycle，period for 60minutes，each axes

safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P、I/P-FG、O/P-FG:100Mohms/500VDC

Fits

tandard

Safety standard

Fit UL1012，IP67 protect level

EMC standard

Fit EN55022，CLASSA

Others

Dimension

185*69*43mm(L*W*H)

Weight/packing

0.9kg/20pcs/19kg/0.026 m³/0.91CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
