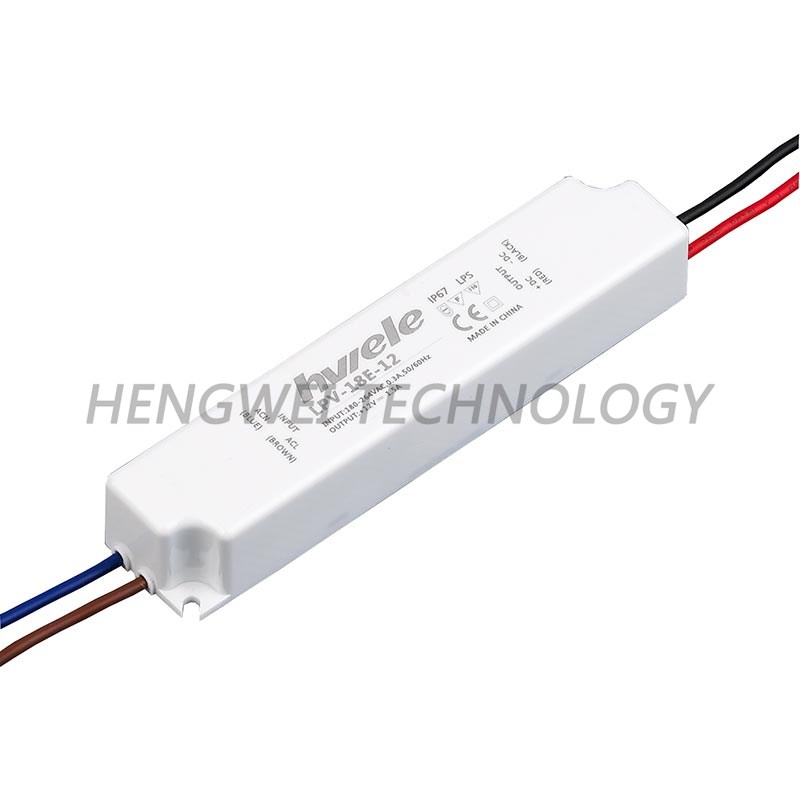

LPV-18E

‧180-264VAC input only
‧Fully encapsulated with IP67 level (Note.5)
‧Protections: Short circuit / Overload / Over voltage / Over temperature
‧Cooling by free air convection
‧Class 2 unit ,no FG
‧Pass LPS
‧100% full load burn-in test
‧Suitable for LED lighting and moving sign applications
‧High reliability / Low cost
‧2 years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

LPH-18ESeries LED waterproof power supply

Features:

‧180-264VAC input only

‧Fully encapsulated with IP67 level (Note.5)

‧Protections: Short circuit / Overload / Over voltage / Over temperature

‧Cooling by free air convection

‧Class 2 unit ,no FG

‧Pass LPS

‧100% full load burn-in test

‧Suitable for LED lighting and moving sign applications

‧High reliability / Low cost

‧2 years warranty

Model

LPV-18E-12

LPV-18E-24

LPV-18E-36

Output

DC voltage

12V

24V

36V

Rated current

1.5A

0.75A

0.5A

Current range

0~1.5A

0~0.75A

0~0.5A

Rated power

18W

18W

18W

Ripple&noise (max.)

120mVp-p

150mVp-p

200mVp-p

Voltage tolerance

±3.0%

Line regulation

±1.0%

Load regulation

±2.0%

Setup,rise time

1500ms,30ms / 230VAC

Hold up time

50ms/230VAC at full load

Input

Voltage range

180 ~ 264VAC , 254 ~ 370VDC

Frequency range

47 ~ 63Hz

Efficiency

77%

82%

83%

AC current

0.3A/230VAC

Inrush current

Cold start 50A(twidth=155μs measured at 50% Ipeak) at 230VAC

Leakage current

<0.25mA/240VAC

Protection

Overload

Above 105% rated output power

Protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

13.8~ 16.2V

27.6~ 32.4V

41.4~ 48.6V

Protection type : Shut off o/p voltage, clamping by zener diode

Over temperature

Hiccup mode, recovers automatically after temperature goes down

Environment

Working humidity

20%~90%RH non-condensing

Storage temp,humidity

-40℃~+80℃,10%~95%RH non-condensing

Temp. coefficient

±0.03%/℃(0 ~ 50℃)

Vibration

10~500HZ,2G 10min/1cycle,period for 60min, X.Y.Z each axes

Safety&EMC

Safety standard

TUV EN60950-1, TUV EN61347-1,EN61347-2-13,IP67 approved; design refer to UL1310 Class 2,CAN/CSA No. 223-M91

Withstand voltage

I/P-O/P:3KVAC

Isolation resistance

I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH

EMC emission

Compliance to EN55022 Class B,EN61000-3-2 Class A, EN61000-3-3

EMC immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A

Others

MTBF

1200.6K hrs min. MIL-HDBK-217F (25℃)

Dimension

140*30*22(L*W*H)

Packing

0.175Kg; 70pcs/13.3Kgs/0.71CUFT

NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Derating may be needed under low input voltage. Please check the static characteristics for more details.

5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the

complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.

7. Suitable for indoor use or outdoor use without direct sunlight exposure. Please avoid immerse in the water over 30 minute.

8. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
