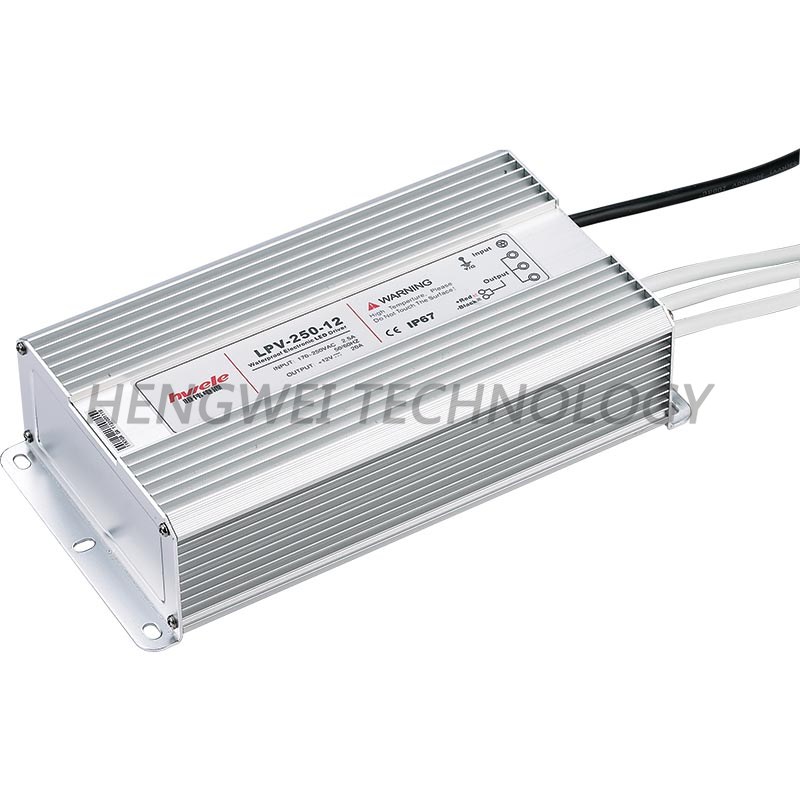

LPV-250W

Model

LPV-250-12

LPV-250-24

LPV-250-36

LPV-250-48

output

DC voltage

12V

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

±1%

Rated current

20A

10A

7A

5A

Current range

0~20A

0~10A

0~7A

0~5A

Rated power

240W

240W

252W

240W

Ripple&noise

150mvp-p

200mvp-p

200mvp-p

240mvp-p

input

Voltage range

180~264VAC，255~373VDC

Frequency

47~63HZ

AC current

2.8A/230VAC

Efficiency

82%

84%

85%

86%

Inrush current

Cold start current50A/230VAC

Leakage current

<3.5mA/240VAC

protection

Over load

Rated output power105%~135%start over load protection

Protection type: hiccup mode，auto-recovery after fault condition is removed

Over voltage

15.6~17.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

Protection type: hiccup mode，auto-recovery after fault condition is removed

Over temperature

Shell temp≥85℃，start over temperature protection

Protection mode: cutoff output，auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storage temp.humidity

-20℃~+85℃，10%~95%RH non condensing

Withstand vibration

10~500HZ，2G10min/1cycle，period for 60minutes，each axes

safety

Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

Isolated resistance

I/P-O/P、I/P-FG、O/P-FG:100Mohms/500VDC

Fits

tandard

Safety standard

Fit UL1012，IP67 protect level

EMC standard

Fit EN55022，CLASSA

Others

Dimension

235*120*56mm(L*W*H)

Weight/packing

2.55kg/9pcs/24kg/0.029 m³/1.04CUFT

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
