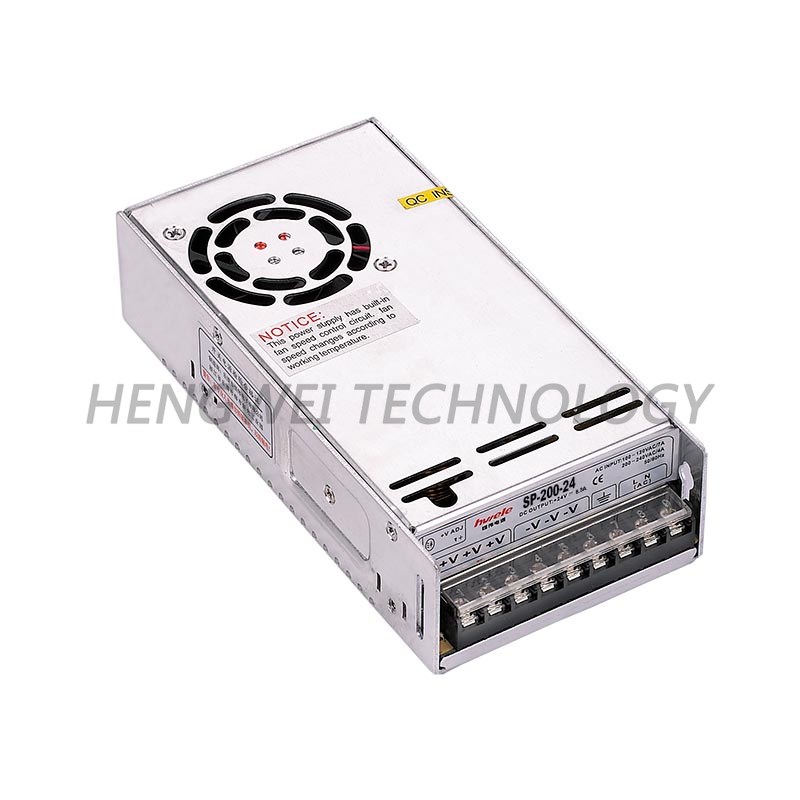

SP-200W series PFC functional single switching power supply
Features:
·universalACinputrange
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
·Cooling fan ON-OFF auto control
·BUilt-in PFC (power factor correction), PF>0.95
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
Model |
SP-200-5 |
SP-200-12 |
SP-200-15 |
SP-200-24 |
SP-200-36 |
SP-200-48 |
|
output |
DC voltage |
5V |
12V |
15V |
24V |
36V |
48V |
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Rated current |
35A |
16.5A |
13A |
8.3A |
5.5A |
4.2A |
|
Current range |
0~35A |
0~16.5A |
0~13A |
0~8.3A |
0~5.5A |
0~4.2A |
|
Rated power |
175W |
198W |
195W |
199.2W |
198W |
201.6W |
|
Ripple&noise |
150mvp-p |
150mvp-p |
150mvp-p |
180mvp-p |
200mvp-p |
240mvp-p |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
±10% |
|
input |
Voltage range |
90~264VAC,125~370VDC |
|||||
frequency |
47~63HZ |
||||||
AC current |
3.0A/115VAC,1.5A/230VAC |
||||||
efficiency |
80% |
86% |
86% |
86% |
87% |
88% |
|
Inrush current |
Cold start current25A/115VAC,40A/230VAC |
||||||
Leakage current |
< 3.5mA/240VAC |
||||||
|
Power factor |
PF>0.95/230VAC,PF>0.98/115VAC Start overload protection |
|||||
protection |
overload |
Rated output power110%~135% start over load protection |
|||||
Protection type:hiccup mode,auto-recovery after fault condition is removed |
|||||||
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
42.6~44.2V |
54.8~56.6V |
|
protection type:cutoff output,recovery after restart power |
|||||||
Over temperature |
≥50℃fan on,≤45℃fan off,≥85℃±5℃start over temperature protection |
||||||
Protection mode:cutoff output,auto-recovery after temperature become normal |
|||||||
environment |
Working temp,humidity |
-20℃~+60℃,20%~90%RH |
|||||
Storagetemp,humidity |
-40℃~+85℃,10%~95%RH non-condensing |
||||||
Withstand vibration |
10~500HZ,2G10min/1cycle,period for 60 minutes,each axes |
||||||
safety |
Withstand voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||||
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC |
||||||
Fitstandard |
Safety standard |
Compliance to UL1012 |
|||||
EMC standard |
Compliance to EN55022,CLASSA |
||||||
others |
Dimension |
199*99*48mm(L*W*H) |
|||||
Weight/packing |
0.8kg/24pcs/20kg/0.034m³/1.51CUFT |
||||||
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
