D-30W

You are here: Home » Products

D-30W

·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

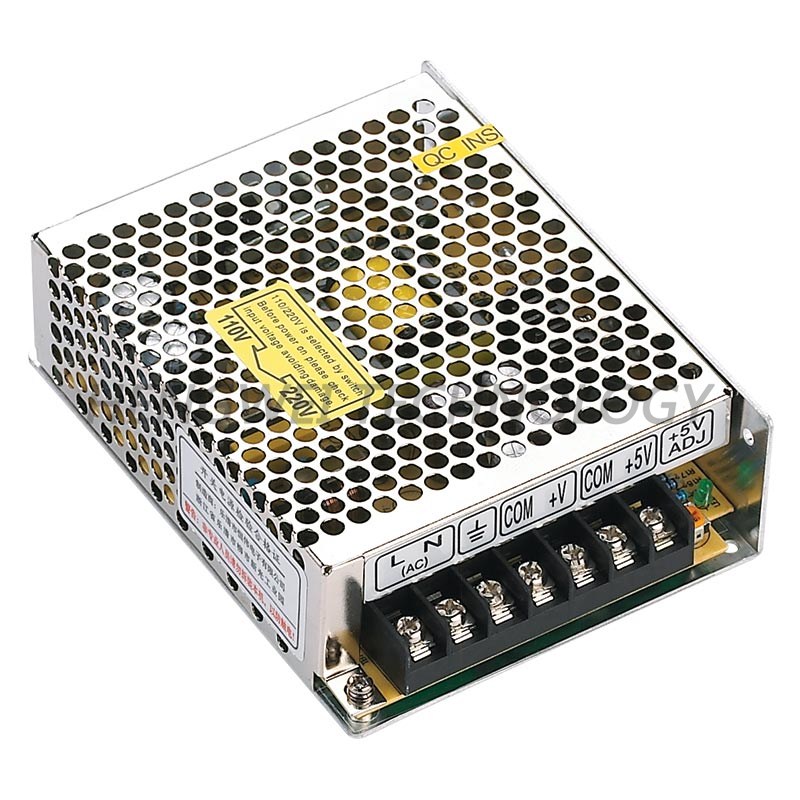

D-30W series normal dual switching power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·Protections:short circuit/over load

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

D-30A

D-30B

D-30C

output

DC voltage

CH1:5V

CH2:12V

CH1:5V

CH2:24V

CH1:12V

CH2:24V

Voltage tolerance

±2%

+3%~-7%

±2%

+4%~-6%

±2%

+5%~-7%

Rated current

4A

1A

2.2A

1A

1A

1A

Current range

0.5~4A

0.2~1A

0.4~2.2A

0.1~1A

0.3~1A

0.1~1A

Rated power

32W

35W

36W

Ripple&noise

80mvp-p

100mvp-p

80mvp-p

120mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

CH1:-9%~+10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

0.8A/115VAC,0.45A/230VAC

efficiency

73%

75%

77%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150start over load protection

protection type :part layer type current limit,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

129*98*38mm(L*W*H)

Weight/packing

0.4kg/45pcs/19kg/0.034m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
