D-60W

You are here: Home » Products

D-60W

·universalACinputrange
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

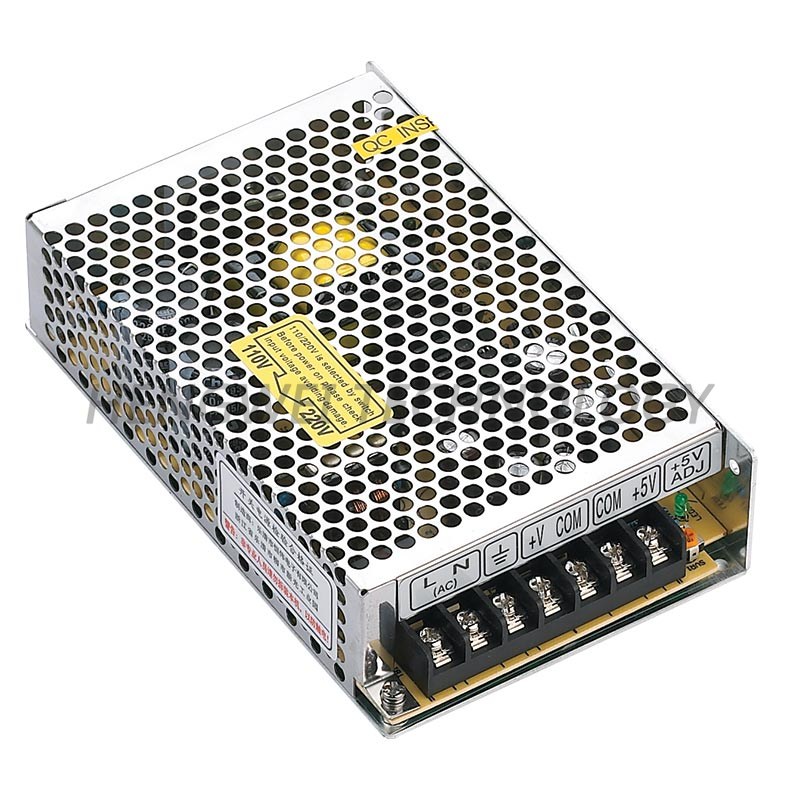

D-60W series normal dual switching power supply

Features:

·universalACinputrange

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

D-60A

D-60B

D-60C

output

DC voltage

CH1:5V

CH2:12V

CH1:5V

CH2:24V

CH1:12V

CH2:24V

Voltage tolerance

±2%

+4%~-8%

±3%

+6%~-8%

±3%

+6%~-8%

Rated current

4A

3A

3A

1.8A

2A

1.5A

Current range

0.8~4A

0.3~3A

0.8~3A

0.2~1.8A

0.5~2A

0.2~1.5A

Rated power

56W

58W

60W

Ripple&noise

80mvp-p

100mvp-p

80mvp-p

120mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

CH1:-9%~+10%

input

Voltage range

90~264VAC,127~373VDC

frequency

47~63HZ

AC current

1.8A/115VAC,0.9A/230VAC

efficiency

74%

76%

78%

Inrush current

Cold start current25A/115VAC,50A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

CH1:115%~135%

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

159*97*38mm(L*W*H)

Weight/packing

0.55kg/45pcs/25.5kg/0.041m³/1.45CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
