DR-240W

You are here: Home » Products

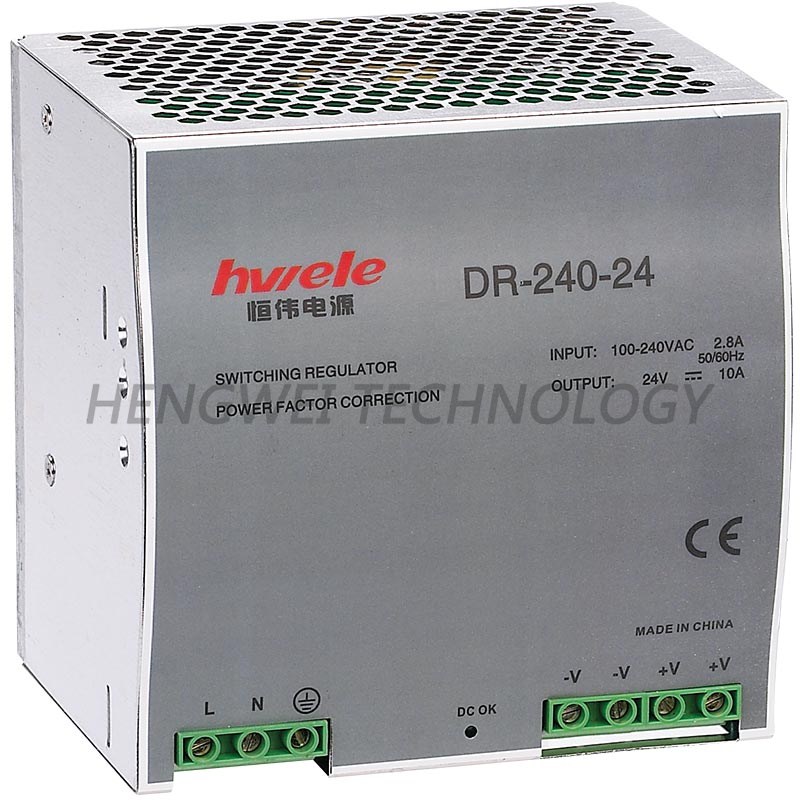

DR-240W

·AC input voltage range selected by switch
​·Small volume,low weight,high efficiency
·protections:short circuit/over load/over voltage/over temp
·cooling by free air convection
·can be installed onDINrail:TS-35/7.5or TS-35/15
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

DR-240W series Din-rail power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·protections:short circuit/over load/over voltage/over temp

·cooling by free air convection

·can be installed onDINrail:TS-35/7.5or TS-35/15

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

DR-240-24

DR-240-36

DR-240-48

output

DC voltage

24V

36V

48V

Voltage tolerance

±1%

±1%

±1%

Rated current

10A

6.6A

5A

Current range

0~10A

0~6.6A

0~5A

Rated power

240W

237.6W

240W

Ripple&noise

120mvp-p

150mvp-p

180mvp-p

DC voltage ADJ.range

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC,255~373VDC

frequency

47~63HZ

AC current

2.8A/110VAC,1.4A/220VAC

efficiency

85%

85%

86%

Inrush current

Cold start current 27A/110VAC,45A/220VAC

Leakage current

< 3.5mA/240VAC

protection

Over load

Rated output power105%~135% start over load protection

protection type :rated current limit,auto-recovery after fault condition is removed

over voltage

30.6~33.2V

42.6~44.2V

54.8~56.6V

protection type:cutoff output,recovery after restart power

over temperature

TSW1detect on heatsink of power transistor≥105℃±5℃, start over temperature protection

Protection mode:cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storage temp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022,CLASSA

others

Dimension

125.5*125.2*100mm(L*W*H)

Weight/packing

1.2kg/12pcs/15.5kg/0.046m³/1.64CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
