HS-200E

·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty
E-mail Us  PDF Download
【Prev Products】 【Next Products】

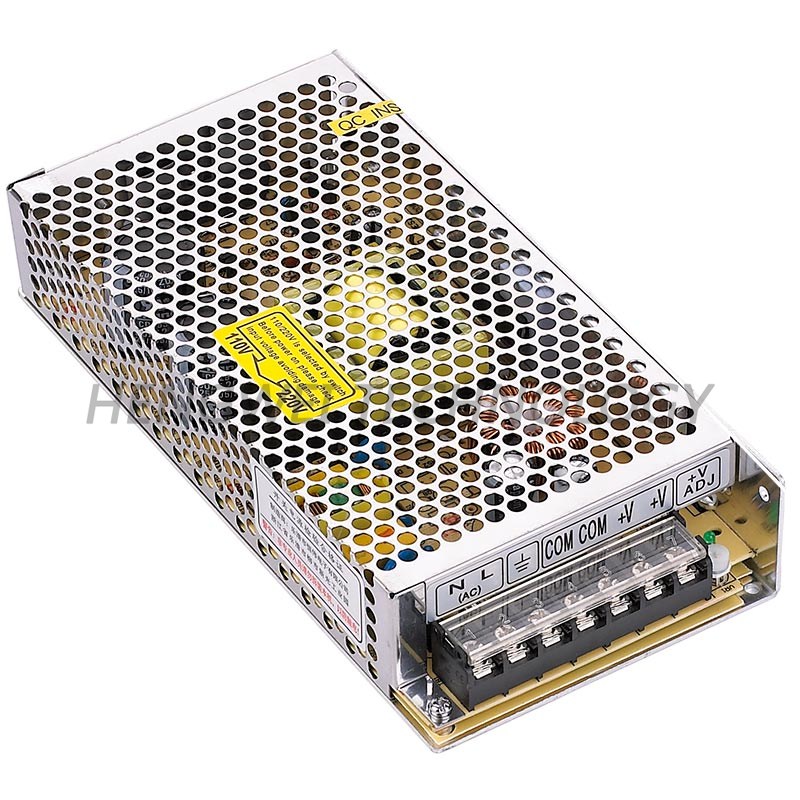

HS-200E series compact single switching power supply

Features:

·AC input voltage range selected by switch

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

HS-200E-5

HS-200E-12

HS-200E-15

HS-200E-24

HS-200E-27

HS-200E-48

output

DC voltage

5V

12V

15V

24V

27V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

30A

16.6A

13.3A

8.3A

7.4A

4.2A

Current range

0~30A

0~16.6A

0~13.3A

0~8.3A

0~7.4A

0~4.2A

Rated power

150W

199.2W

199.5W

199.2W

199.8W

201.6W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

180mvp-p

180mvp-p

200mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch),254~373VDC

frequency

47~63HZ

AC current

4.0A/115VAC,2.0A/230VAC

efficiency

80%

83%

83%

85%

85%

86%

Inrush current

Cold start current18A/115VAC,36A/230VAC

Leakage current

< 2.5mA/240VAC

protection

overload

Rated output power115%~150% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

42.6~44.2V

54.8~56.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃,20%~90%RH

Storage temp,humidity

-20℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

199*98*38mm(L*W*H)

Weight/packing

0.6kg/30pcs/19kg/0.034 m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
