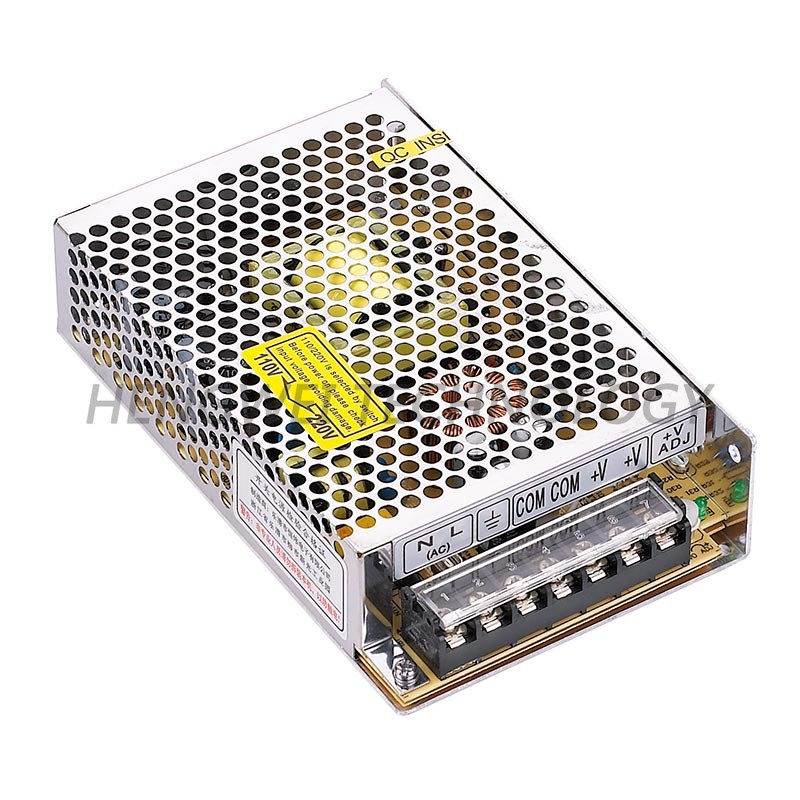

NES-100W series Efficient single switching power supply

Features:

·universal AC input range

·Small volume,low weight,high efficiency

·Protections:short circuit/over load/over voltage

·cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Years warranty

Model

NES-100-5

NES-100-12

NES-100-15

NES-100-24

output

DC voltage

5V

12V

15V

24V

Voltage tolerance

±2%

±1%

±1%

±1%

Rated current

16A

8.3A

6.7A

4.2A

Current range

0~16A

0~8.3A

0~6.7A

0~4.2A

Rated power

80W

99.6W

100.5W

100.8W

Ripple&noise

80mvp-p

100mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

input

Voltage range

90~264VAC,125~373VDC

frequency

47~63HZ

AC current

2.2A/115VAC,1.1A/230VAC

efficiency

79%

82%

82%

84%

Inrush current

Cold start current 20A/115VAC,40A/230VAC

Leakage current

< 2mA/240VAC

protection

Over load

Rated output power110%~150% start over load protection

protection type:hiccup mode,auto-recovery after fault condition is removed

over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storagetemp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance toUL1012

EMC standard

Compliance toEN55022,CLASSA

others

Dimension

159*97*38mm(L*W*H)

Weight/packing

0.48kg/45pcs/22.5kg/0.041m³/1.45CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
