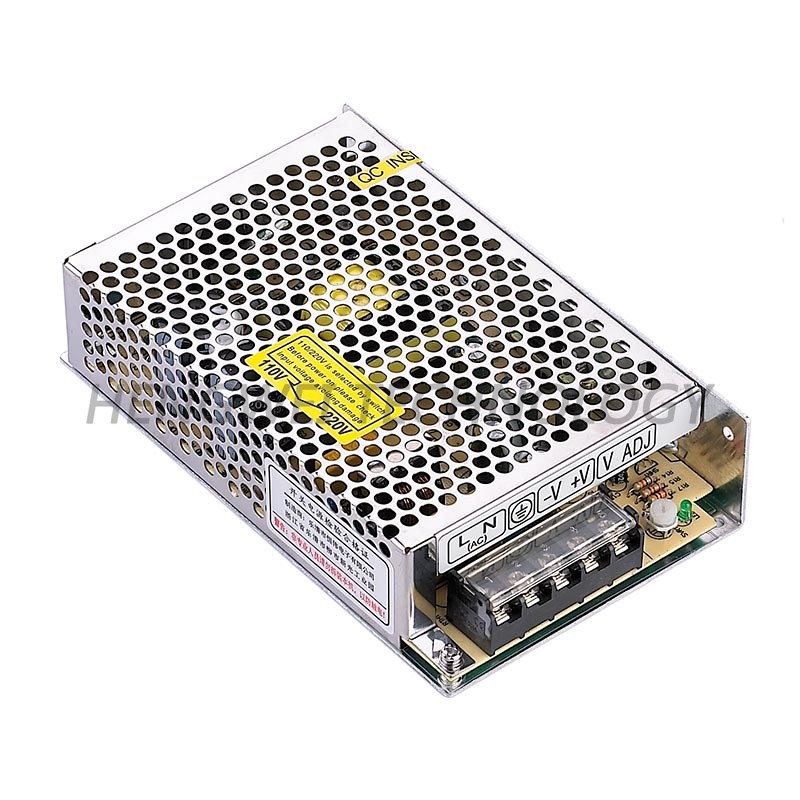

S-60W

Model

S-60-12

S-60-15

S-60-24

output

DC voltage

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

Rated current

5A

4A

2.5A

Current range

0~5A

0~4A

0~1.8A

Rated power

60W

60W

60W

Ripple&noise

100mvp-p

100mvp-p

120mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)，255~373VDC

frequency

47~63HZ

AC current

1.4A/115VAC，0.7A/230VAC

efficiency

79%

80%

82%

Inrush current

Cold start current18A/115VAC，36A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power105%~135% start over load protection

protection type :part layer type current limit，auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storagetemp,humidity

-20℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022，CLASSA

others

Dimension

159*97*38mm(L*W*H)

Weight/packing

0.5kg/45pcs/23.5kg/0.041m³/1.45CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
