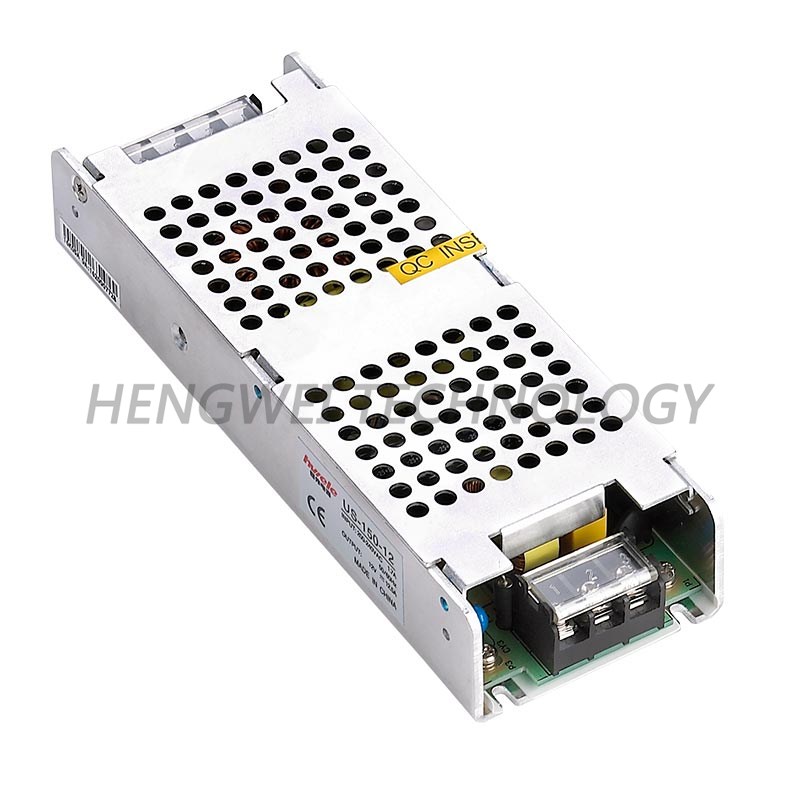

US-150W series slim type single switching power supply

Features:

·180~264VAC input range

·Slim type,Small volume,low weight,high efficiency

·Protections:short circuit/over load

·Cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·No load consumption<1.0W

·2 Years warranty

Model

US-150-12

US-150-24

output

DC voltage

12V

24V

Voltage tolerance

±2%

±2%

Rated current

12.5A

6.3A

Current range

0~12.5A

0~6.3A

Rated power

150W

151.2W

Ripple&noise

180mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

input

Voltage range

180~264VAC,255~373VDC

Setup,rise,hold up time

800ms,30ms,24ms/230VAC

frequency

47~63HZ

AC current

1.6A/230VAC

efficiency

88%

89%

Inrush current

Cold start current 45A/230VAC

Leakage current

<2mA/240VAC

protection

overload

Rated output power110%~150% start over load protection


environment

Working temp,humidity

-20℃~+50℃,20%~90%RH

Storage temp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fit standard

Safety standard

Compliance to UL1012,UL60950-1,GB4943

EMC standard

Compliance to EN55022,EN61000-3-2,CLASSA

others

Dimension

167*59*30mm(L*W*H)

Weight/packing

0.4kg/50pcs/20kg/0.025m³/0.88CUFT

MTBF

390K hrs min. MIL-HDBK-217F(25℃)

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
