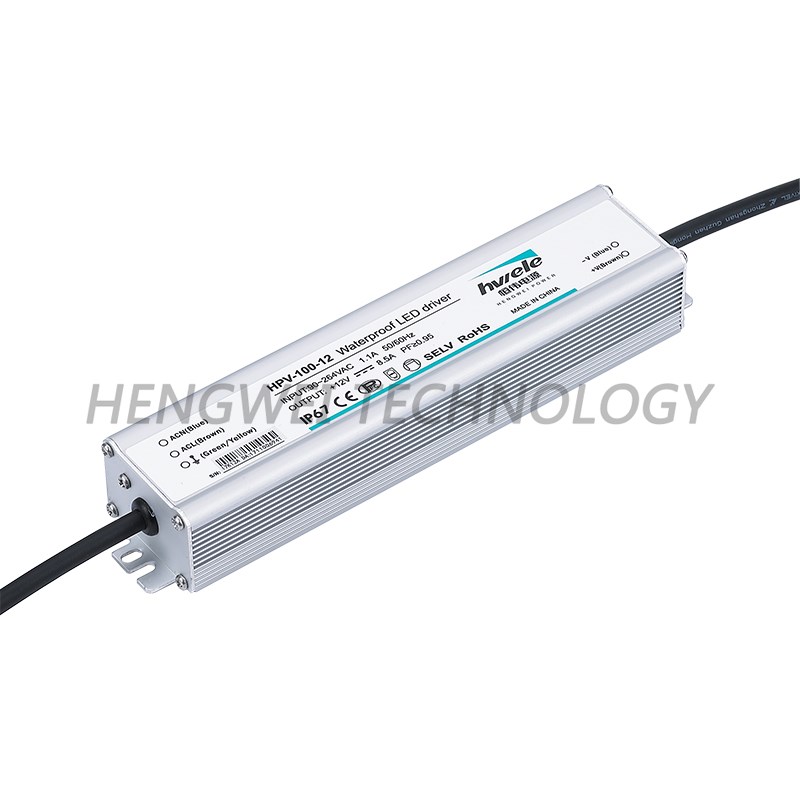

HPV-100W

Model

HPV-100-12

HPV-100-20

HPV-100-24

HPV-100-36

HPV-100-48

output

DC voltage

12V

20V

24V

36V

48V

Rated current

8.3A

4.8A

4.2A

2.65A

2A

Rated power

99.6W

96W

100.8W

95.4W

96W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

200mvp-p

200mvp-p

input

Voltage range

90~264VAC，47~63HZ ，127~370VDC

AC current

1.2A/115VAC，0.55A/230VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

efficiency

90%

93%

93%

93%

93%

Inrush current

Cold start current35A/115VAC，75A/230VAC

Leakage current

< 0.75mA/240VAC

protection

Over Load

95%~108%

protection type :Constant current limiting ，auto-recovery after fault condition is removed

Short circuit

Hiccup mode，recovers automatically after fault condition is remove

Over voltage

14~17V

23~27V

28~34V

41~46V

54~60V

protection type:Shut down o/p voltage re-power on to recover

Over temperature

100℃±10℃（RTH2）

protection type:Shut down o/p voltage re-power on to recover

environment

Working temp,humidity

-30℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved

EMC standard

Fit EN55015，EN61000-3-2ClassC(>60%load):EN61000-3-3

others

Dimension

223*69*39mm(L*W*H)

Weight/packing

1kg/20pcs/21kg/0.03m³/1.07CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
