HPV-240W

You are here: Home » Products

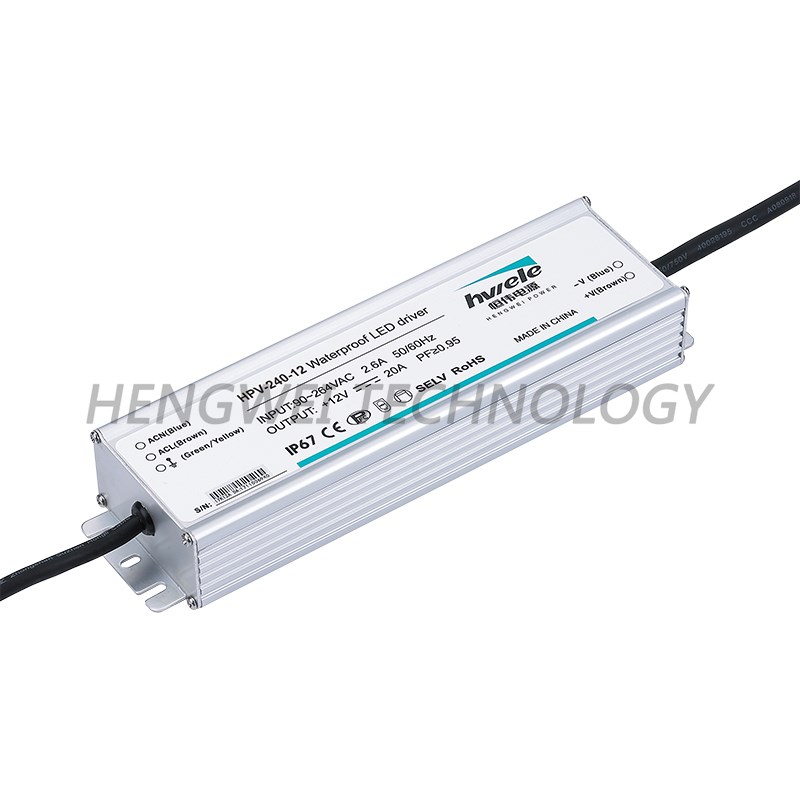

HPV-240W series PFC Constant Voltage LED driver

Features:·universal AC input

·BUilt-in power factor correction

·Protections:short circuit/over load/over voltage/over temp

·Cooling by free air convection

·IP67 design for indoor or outdoor installations

·Suitble for LED lighting and moving sign applications

·3Year warranty

Model

HPV-240-12

HPV-240-24

HPV-240-36

HPV-240-42

HPV-240-48

HPV-240-54

output

DC voltage

12V

24V

36V

42V

48V

54V

Rated current

20A

10A

6.7A

5.72A

5A

4.45A

Rated power

240W

240W

241.2W

240.2W

240W

240.3W

Ripple&noise

150mvp-p

150mvp-p

250mvp-p

250mvp-p

250mvp-p

350mvp-p

Voltage tolerance

±2.5%

±1%

±1%

±1%

±1%

±1%

input

Voltage range

90~264VAC47~63HZ 127~370VDC

AC current

4A/115VAC2A/230VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

efficiency

90%

93%

93%

93%

93.5%

94%

Inrush current

Cold start current35A/115VAC75A/230VAC

Leakage current

< 0.75mA/240VAC

protection

Over load

95%~108%

protection type :Constant current limiting auto-recovery after fault condition is removed

Short circuit

Hiccup moderecovers automatically after fault condition is remove

Over voltage

14~17V

26~33V

40~48V

46~50V

53~62V

59~65V

protection type:Shut down o/p voltage re-power on to recover

Over temperature

105±10RTH2

protection type:Shut down o/p voltage re-power on to recover

environment

Working temp,humidity

-30~+6020%~90%RH

Storagetemp,humidity

-40~+8510%~95%RH non-condensing

Withstand vibration

10~500HZ2G 10min/1cycleperiod for 60 minuteseach axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved

EMC standard

Fit EN55015EN61000-3-2ClassC(>60%load):EN61000-3-3

others

Dimension

249*69*39mm(L*W*H)

Weight/packing

1.3kg/20pcs/27kg/0.033m³/1.15CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
