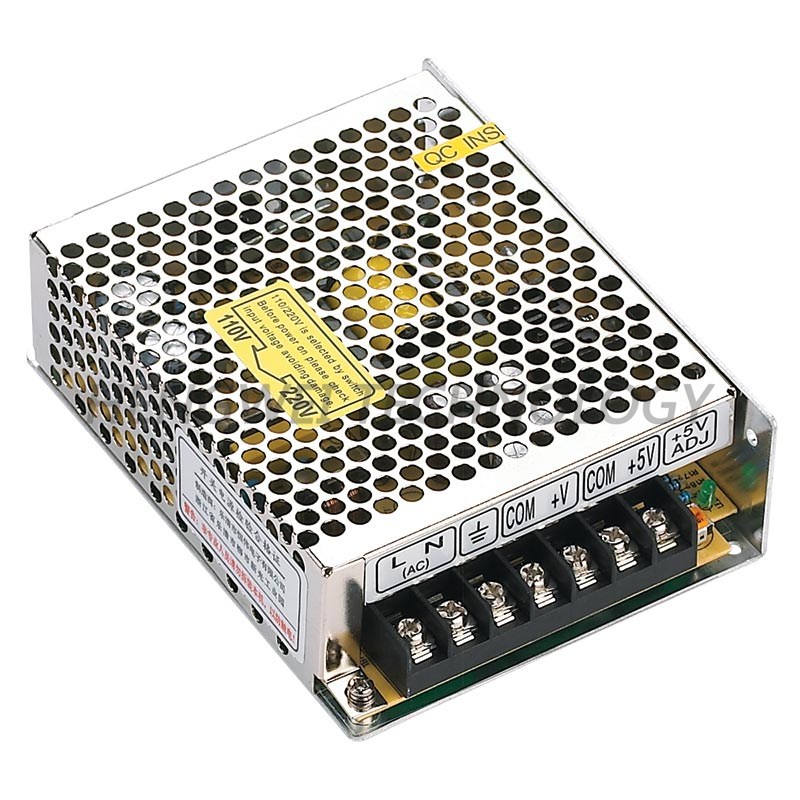

T-30W

Model

T-30A

T-30B

output

DC voltage

CH1:+5V

CH2:+12V

CH3:-5V

CH1:+5V

CH2:+12V

CH3:-12V

Voltage tolerance

±2%

+4%~-6%

+5%~-10%

±2%

+4%~-6%

+5%~-10%

Rated current

3A

1A

0.5A

3A

1A

0.5A

Current range

0.6~3A

0.1~1A

0.1~0.5A

0.6~3A

0.1~1A

0.1~0.5A

Rated power

30W

33W

Ripple&noise

80mvp-p

100mvp-p

100mvp-p

80mvp-p

100mvp-p

100mvp-p

DCvoltage ADJ.range

CH1:-9%~+10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)，255~373VDC

frequency

47~63HZ

AC current

0.8A/115VAC，0.45A/230VAC

efficiency

73%

74%

Inrush current

Cold start current18A/115VAC，36A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150start over load protection

protection type :part layer type current limit，auto-recovery after fault condition is removed

-----

-----

-----

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storagetemp,humidity

-20℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC

Fitstandard

Safety standard

Compliance to UL1012

EMC standard

Compliance to EN55022，CLASSA

others

Dimension

129*98*38mm(L*W*H)

Weight/packing

0.4kg/45pcs/19kg/0.034m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
